Hi guys

I have a problem. When I set in fusion 360 the origin 8n the center of the model ( for example, a square plate 50 by 50 mm and 15mm of z axis), the center ir correct when I set it in bcnc.

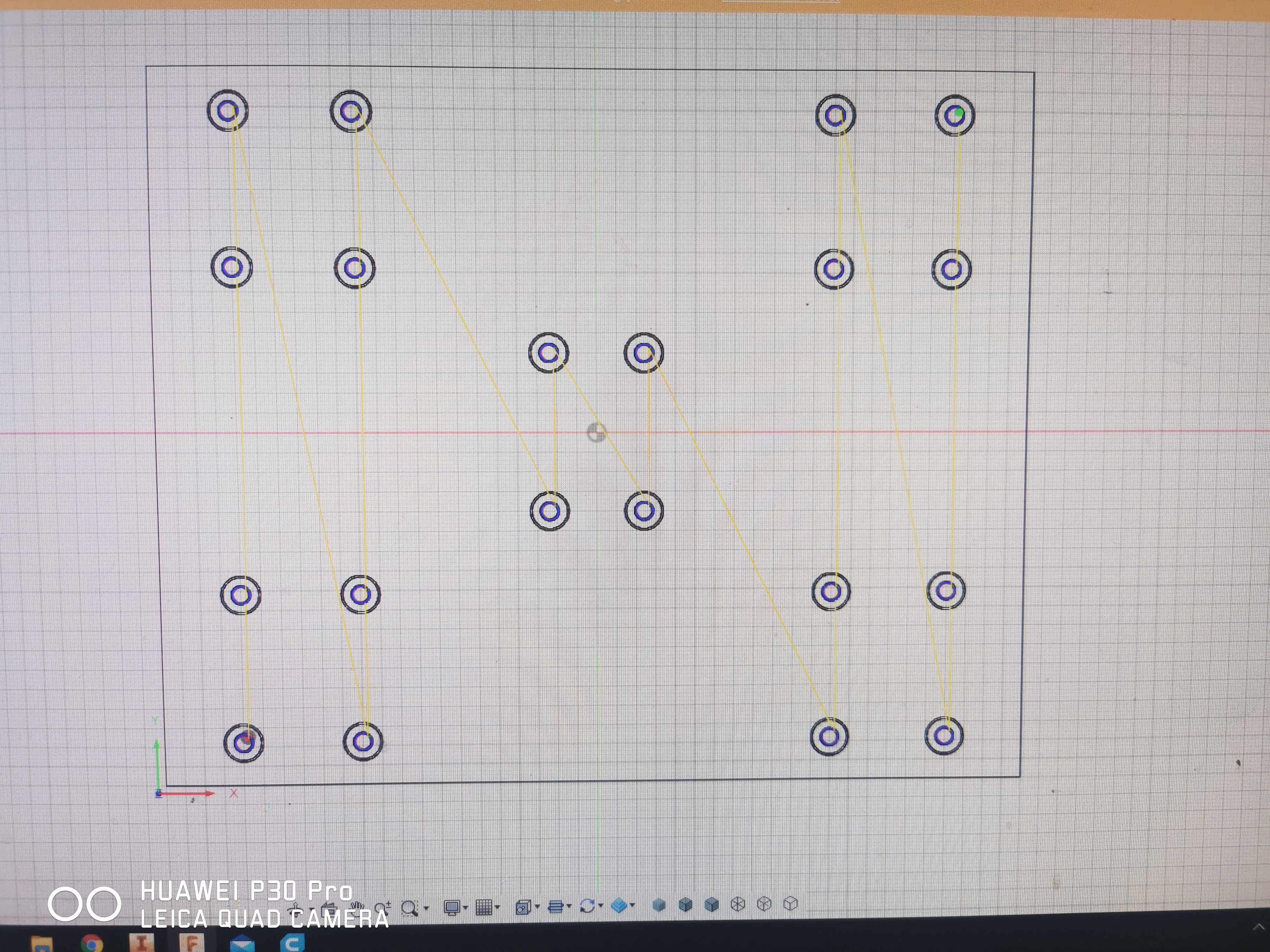

The problem comes when i set the origin in fusion 360 in different spot:

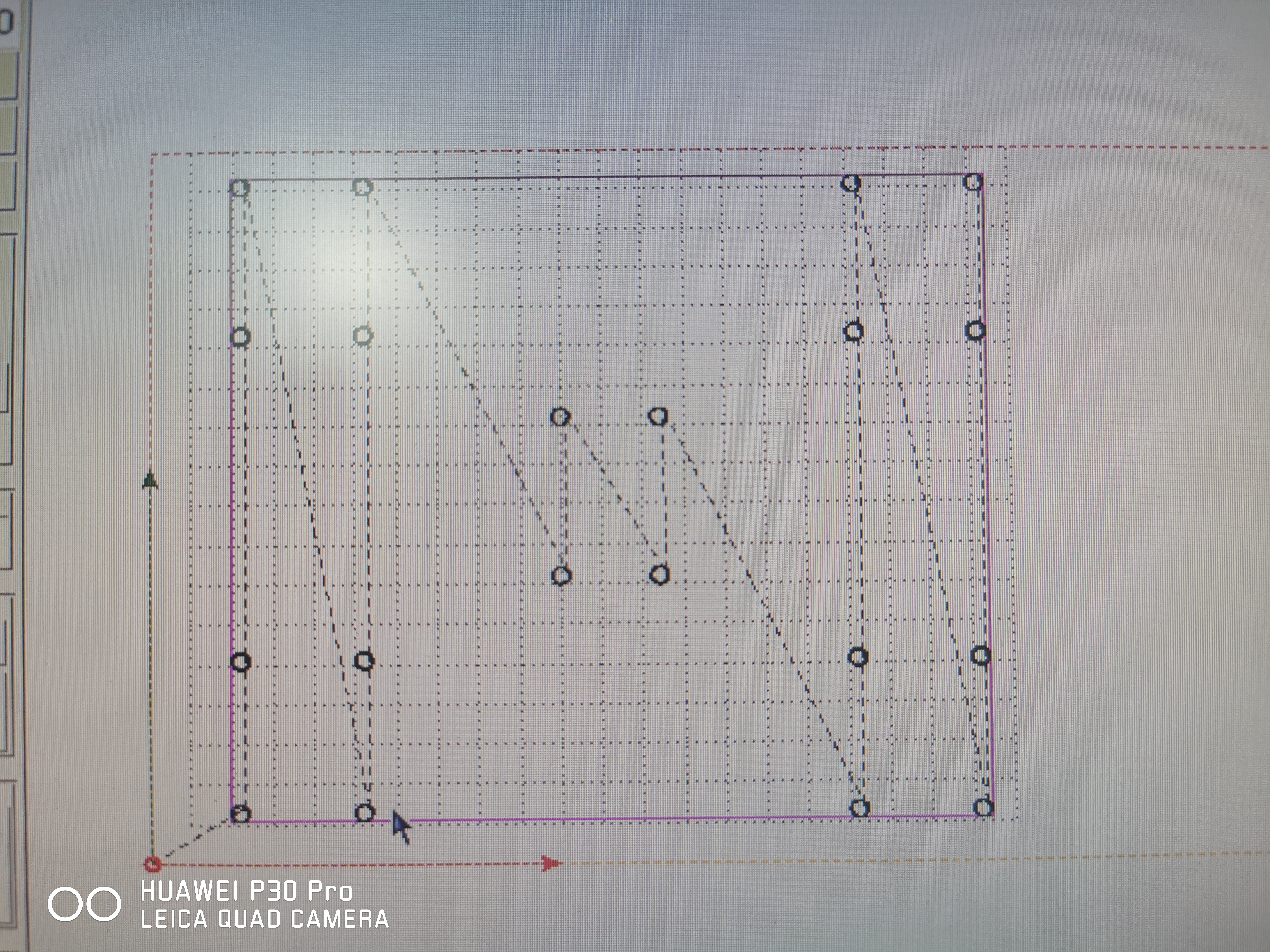

If I set the origin, viewing from the top, at the left lower corner of the stock (let's assume a 1mm offset of stock. That will be a 52 by 52 and no stock in z Axis) when I set the. NC file from fusion the bcnc offset that origin.

Let's assume I'm. Running a 5mm diameter tool

It has an offset exactly plus (tool diameter, 5mm) on x and y Axis.

I have to set the origin in bcnc (wpos) - 5mm on x and y Axis to make the cuts exact where I want. If I had a stockof 52 by 52 and I set the wpos on the 0,0 of the stock, it has am offset when I run the program

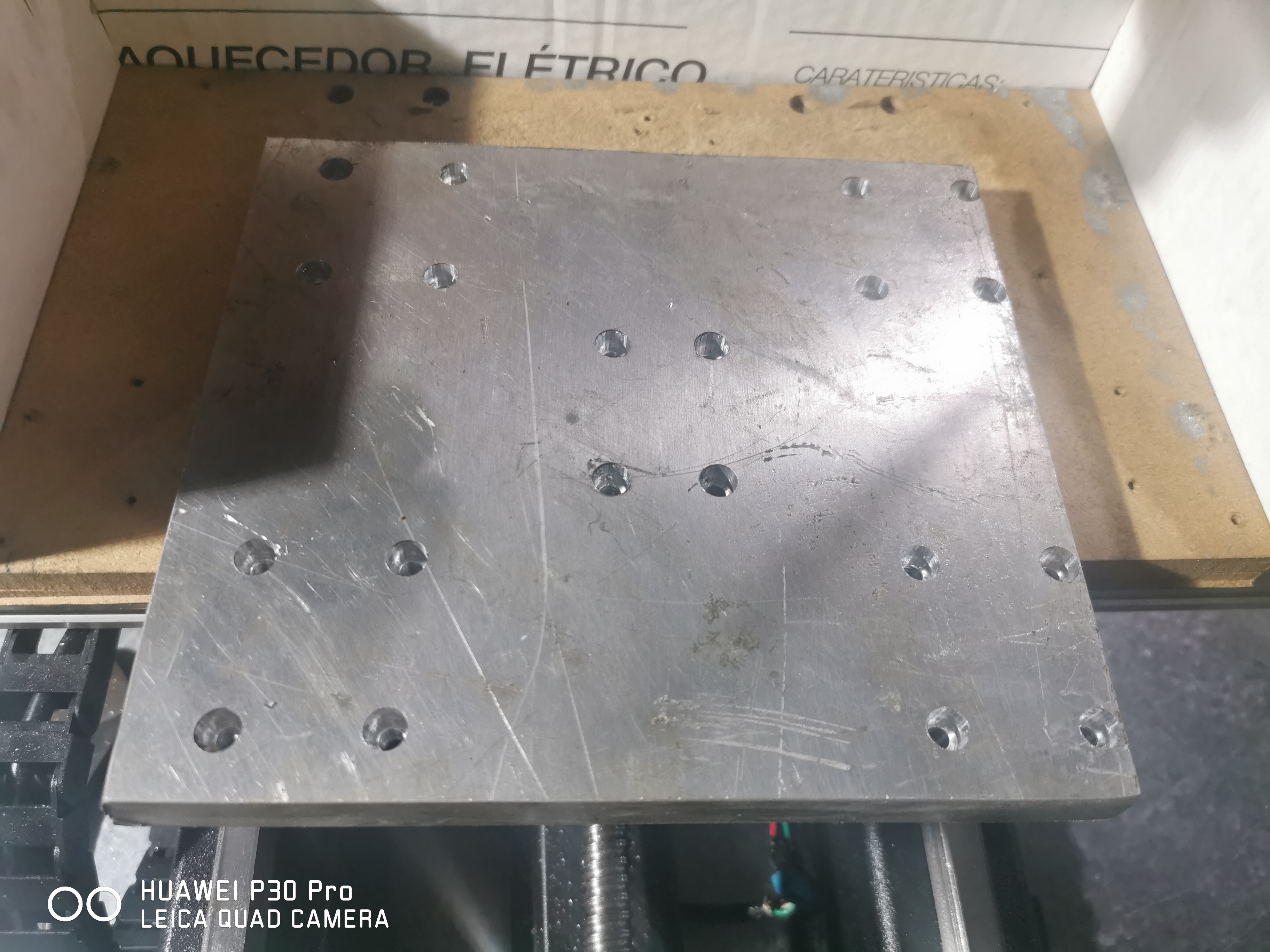

That's annoying cause I spoiled a 15 thic aluminium plate cause that (because that stock was nearly the exact measurements of my model)

What's wrong????
